Servers

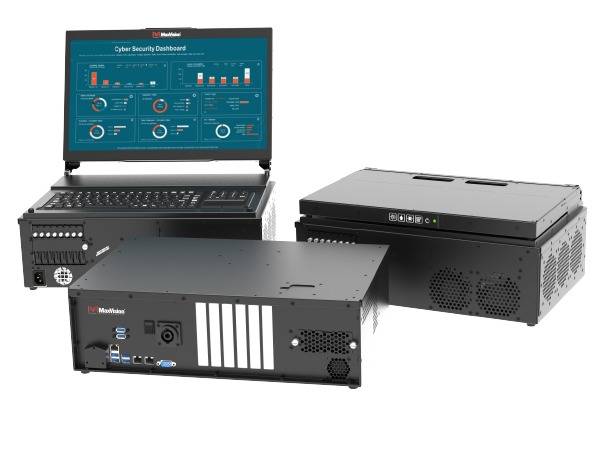

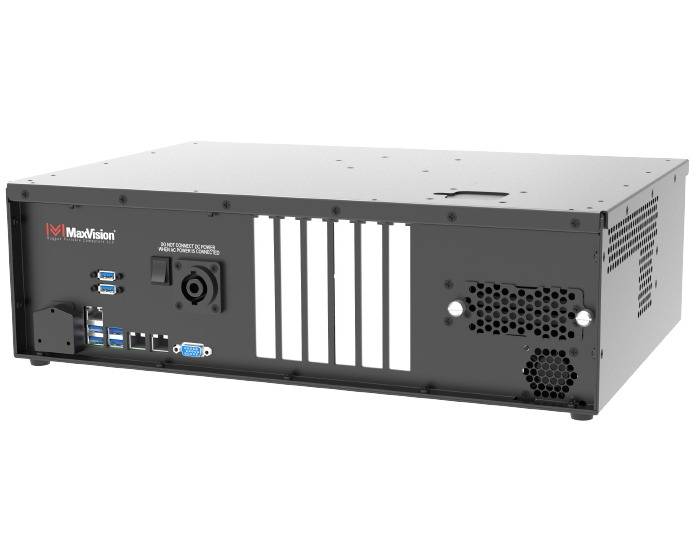

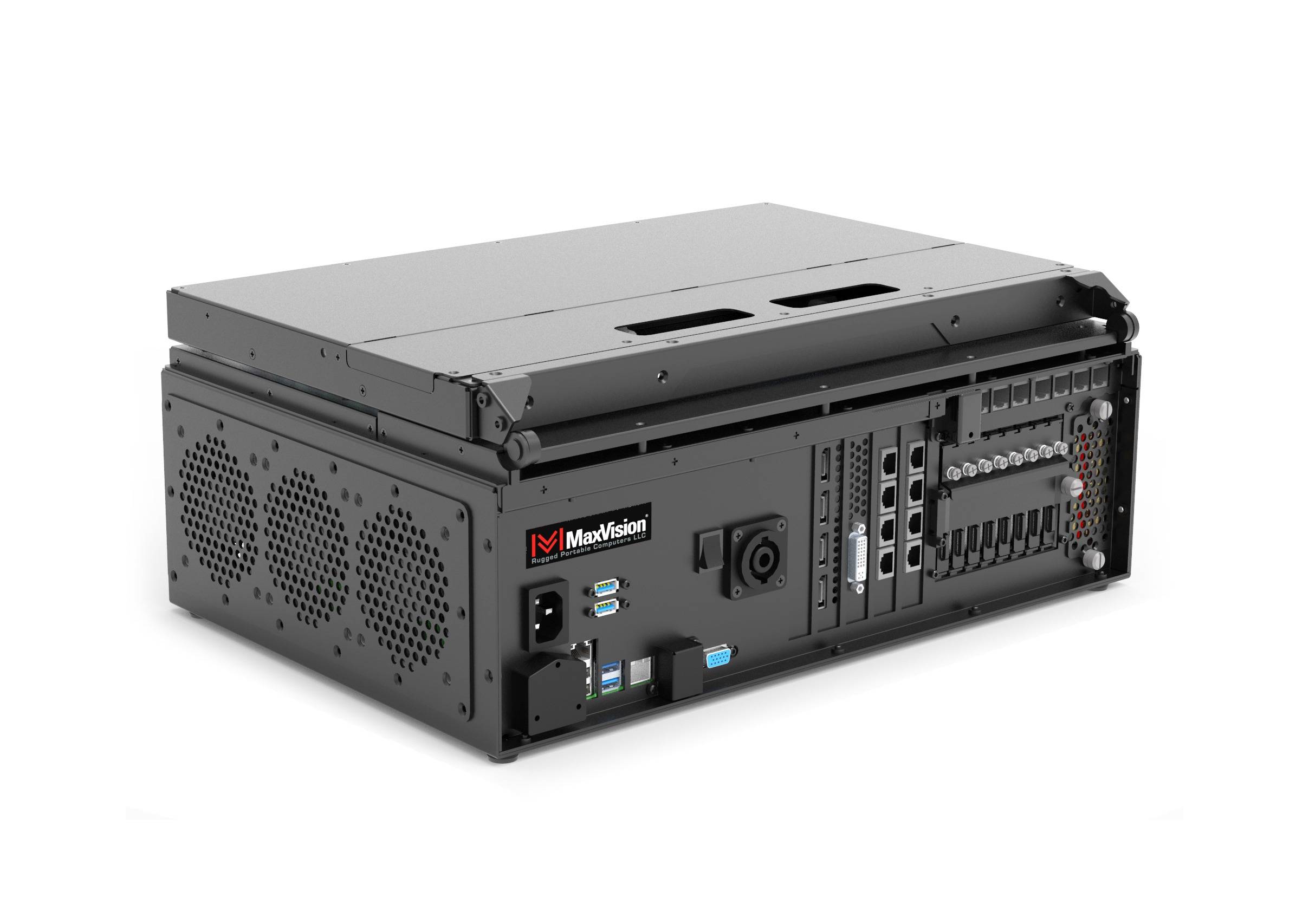

CyberPac® 8125 / 9115
Compact Size
Designed for Overhead Bin – Commercial Aircraft
Request a Quote
Power System
AC / DC / Integrated UPS

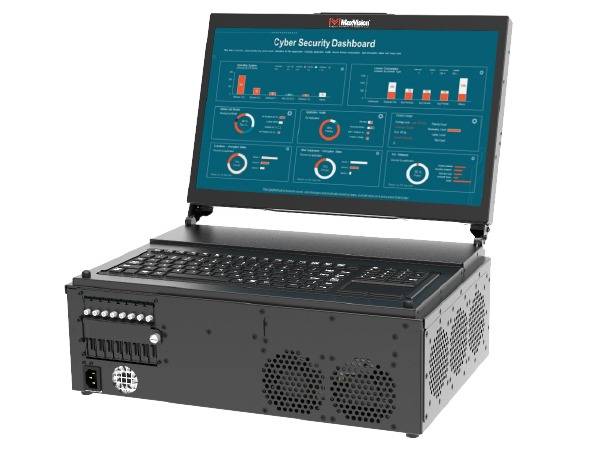

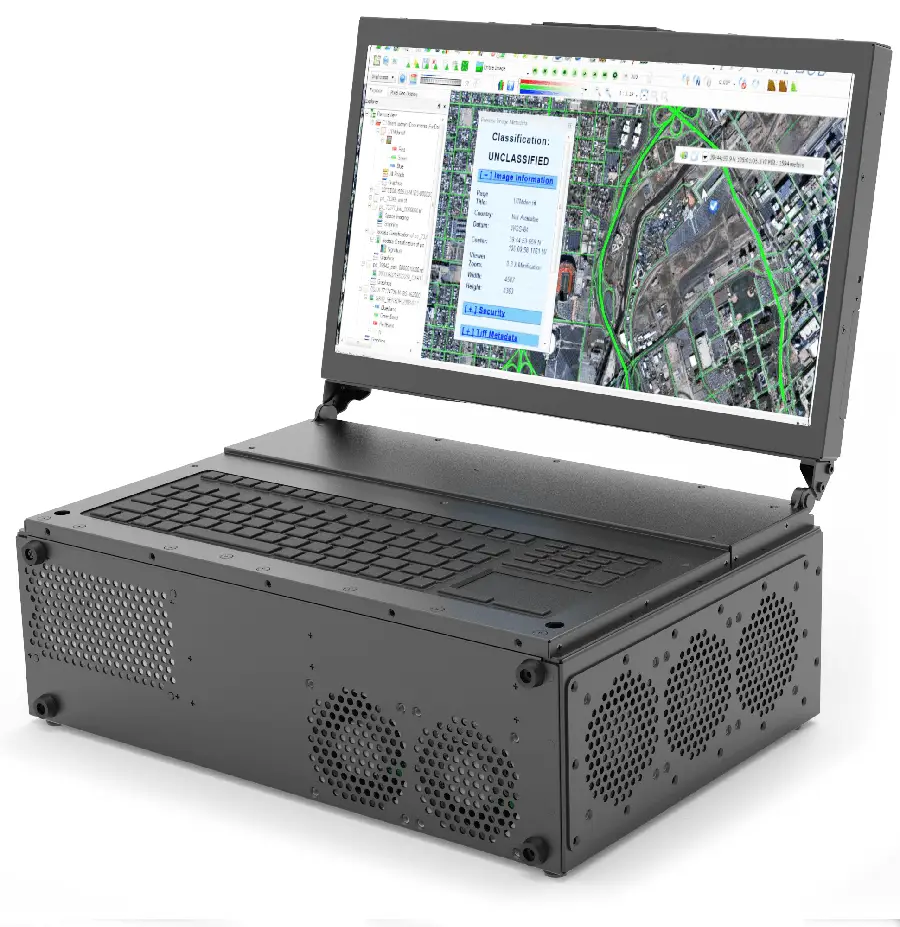

Display Option with Keyboard

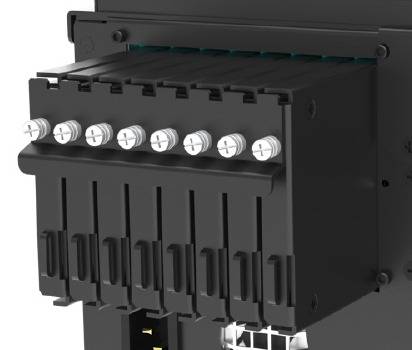

Removable Drives
Features
(CyberPac™ 8125/9115)
| Processor |
Up to 40 Cores - 3nd Gen Intel® Xeon® Scalable 8125 (Intel Processor)
|
Up to 64 Cores - Single 3rd Gen AMD® EPYC® 9115 (AMD Processor)
|
| Maximum Memory |
Up to 2TB of DDR4 RDIMM ECC Memory 8125 (Intel Processor)
|
Up to 2TB of DDR4 RDIMM ECC Memory 9115 (AMD Processor)
|
| Expansion Slots |
1x PCIe 4.0 x16 Slot Available - Up to 10.5” Length 1x PCIe 4.0 x8, 1x PCIe 4.0 x8(x16) Slots Available - Up to 10.5” Length 3x PCIe 3.0 x8 Slots Available - Up to 10.5” Length 8125 (Intel Processor)
|
4x PCIe 4.0 x16, 2x PCIe 4.0 x8 Slots Available - Up to 10.5” Length 9115 (AMD Processor)
|
| Display (Optional) | 18.5” FHD(1920 x 1080) Display with Integrated Keyboard/Touchpad | |
| I/O Ports |
2x USB 2.0, 4x USB 3.0 - 2x 1GbE Copper - VGA 8125 (Intel Processor)
|
6x USB 3.0 Ports - 1GbE Copper Port - VGA 9115 (AMD Processor)
|
| Max Removable Storage |
8-Drive Removable Magazine - Up to 15.38TB per(Total:123.04TB)-SATA or 5-Drive Removable Magazine - Up to 30.72TB per(Total:153.60TB)-SAS Integrated RAID(0, 1, 5, 10) available with SATA 8125 (Intel Processor)
|
8-Drive Removable Magazine - Up to 15.38TB per(Total:123.04TB)-SATA or 5-Drive Removable Magazine - Up to 30.72TB per(Total:153.60TB)-SAS 9115 (AMD Processor)
|
| Size |
17.5” x 7.16” x 12.11” Size(Open w/ Screen): 17.5” x 17.5” x 17.1” 8125 (Intel Processor)
|
17.5” x 7.16” x 12.11” Size(Open w/ Screen): 17.5” x 17.5” x 17.1” 9115 (AMD Processor)
|
| Weight | ~22 to 35 LBS, depending on configuration | |

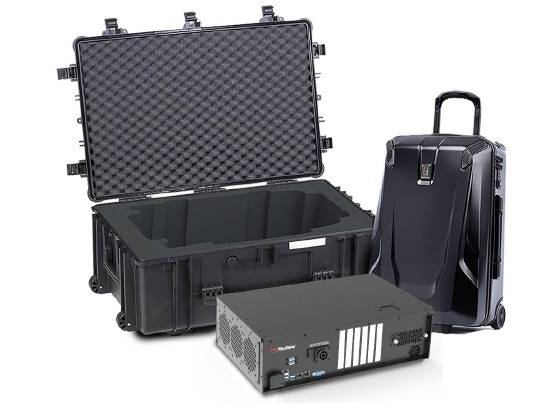

| Transit Case | Custom designed transit case to meet MIL-STD-810H (Optional) Custom Rollaboard Bag designed for commercial air travel | |
| Environmental | Operational: 0° to 50° C | |
| Regulation | FCC Class A |
