MaxPac^® SP Rugged Portable Workstation

The MaxVision® MaxPac® 8110SP is a rugged, portable, high-performance multi-screen workstation designed for demanding applications in uncrewed systems, cyber operations, C6ISR, and geospatial fields.
Key features include its compact design, modular flex-fold display system (available with single, dual, or triple screens in 21.5″, 24.1″, or 27″ sizes), and powerful processing capabilities with Intel® Xeon® processors (up to 24 cores). It supports up to 2TB of DDR5 ECC memory.

Multi‑Screen Workstation for Mission‑Critical Operations

The MaxVision MaxPac® SP is a compact, mission‑ready rugged portable workstation engineered for demanding applications in uncrewed systems, cyber operations, C6ISR, and geospatial analysis. Configure single, dual, or triple modular flex‑fold displays (21.5″ / 24.1″ / 27″), pair with Intel® Xeon® processors up to 24 cores, add NVIDIA® RTX graphics, and scale to 2TB DDR5 ECC memory and massive removable storage — all transportable in a single rugged transit case with under two minutes setup.

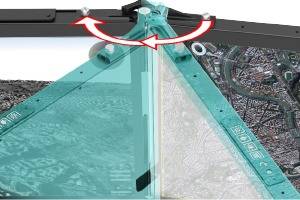

Modular Flex‑Fold Displays

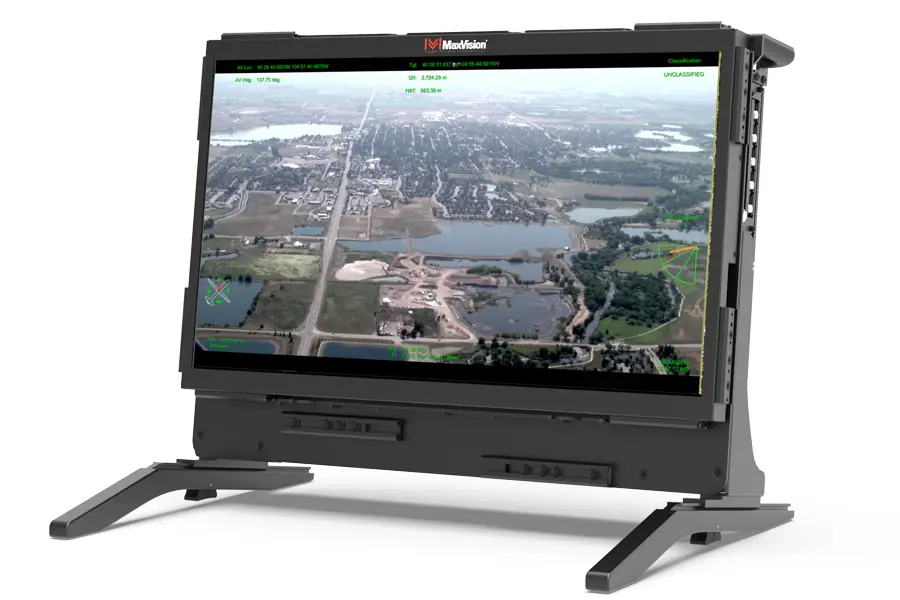

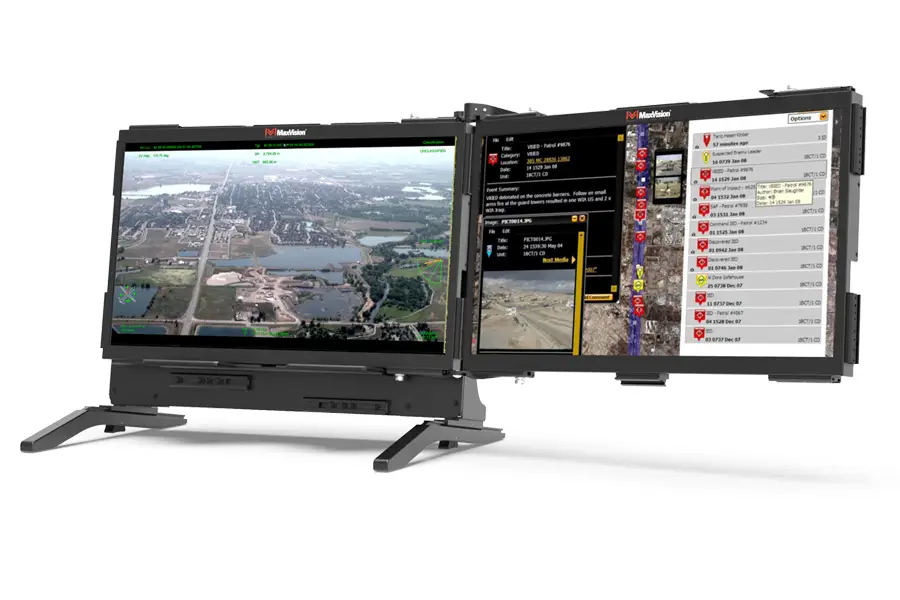

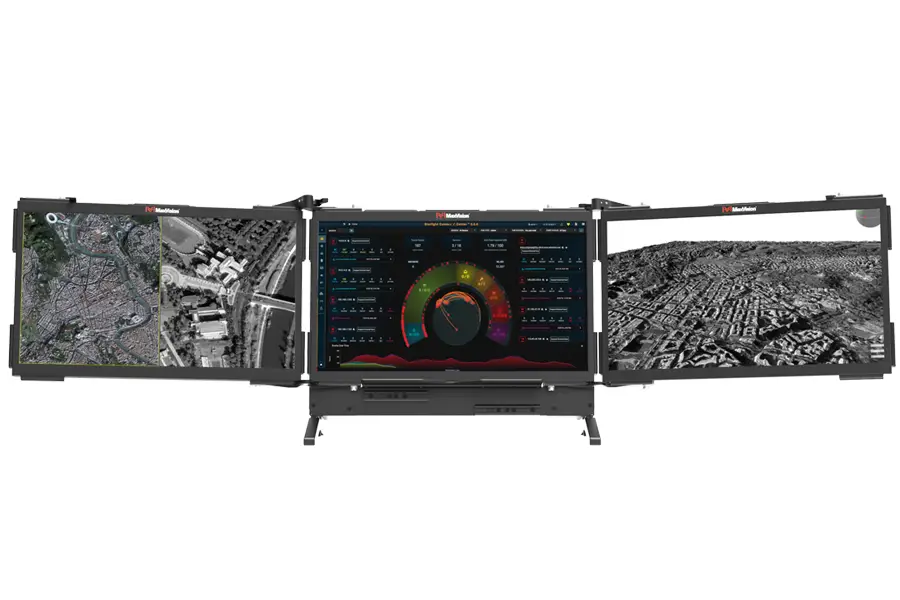

Single, dual or triple configurations — 21.5″ FHD (1920×1080), 24.1″ WUXGA (1920×1200), or 27″ 4K UHD (3840×2160). Field configurable in under 2 minutes.

High‑Performance Compute
Intel® Xeon® processors available in 12, 16, 20, or 24 core options.

GPU & Expansion
NVIDIA® RTX™ 4000 PRO, 4500 PRO, 5000 PRO Blackwell, plus 3x PCIe 5.0 x16 slots for accelerators.

Massive Removable Storage
Up to 2TB of memory; multiple bay options supporting up to ~161TB.

Ruggedized for Field Use
Custom transit case to MIL‑STD‑810H, rechargeable removable air filter, operational 0°–50°C.

Feature	Specification
Processor	Up to 24 Cores Intel® Xeon®
Memory	Up to 2TB of Memory
Storage	Up to ~161TB of Removable Drive Storage
Graphics	NVIDIA® RTX™ 4000 PRO, 4500 PRO, 5000 PRO Blackwell
Display Option	Up to Three 21.5″, 24.1″, or 27″ FHD Flex Fold Displays
Filtration	Removable filtration system with rechargeable air filter.

Why Choose The MaxPac® SP

Field‑ready performance: workstation power in a transportable, rugged form factor.

Modular display & storage: adapt to mission needs with tool‑free reconfiguration and hot‑swappable drives.

Redundant & resilient: ECC memory, TPM/IPMI motherboard, and optional battery ensure continuous operation in contested environments.

Secure, rugged design: custom MIL‑STD transit case, removable rechargeable air filtration, and robust power options

Applications

Uncrewed systems (UAS/USV/robotics): onboard mission control, sensor fusion, live video processing, and operator workflows.

C6ISR & Command Post: multi‑operator situational awareness, common operating pictures, and rapid mission setup.

Cyber operations & incident response: high I/O throughput, VM density, packet capture, and removable evidence storage.

Uncrewed – UAVs & Drone-Based Surveillance, Recon, and Mapping

Key Features

Multiple Screen Configurations – 21.5” // 24.1” // 27” Single, Dual, or Triple Displays with Modular Flex-Fold Display System.

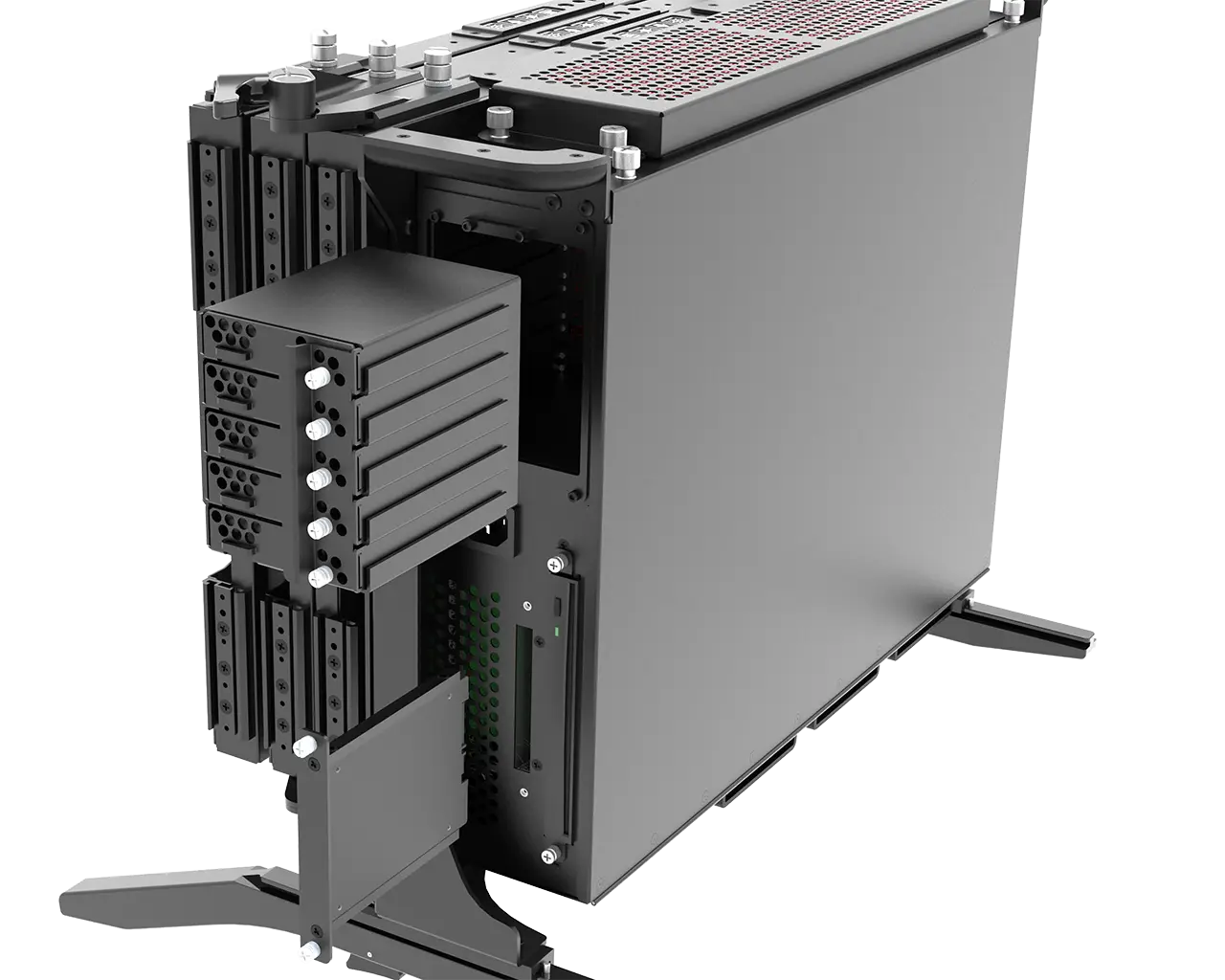

Removable SSDs – Up to ~161TB of Removable Drive Storage.

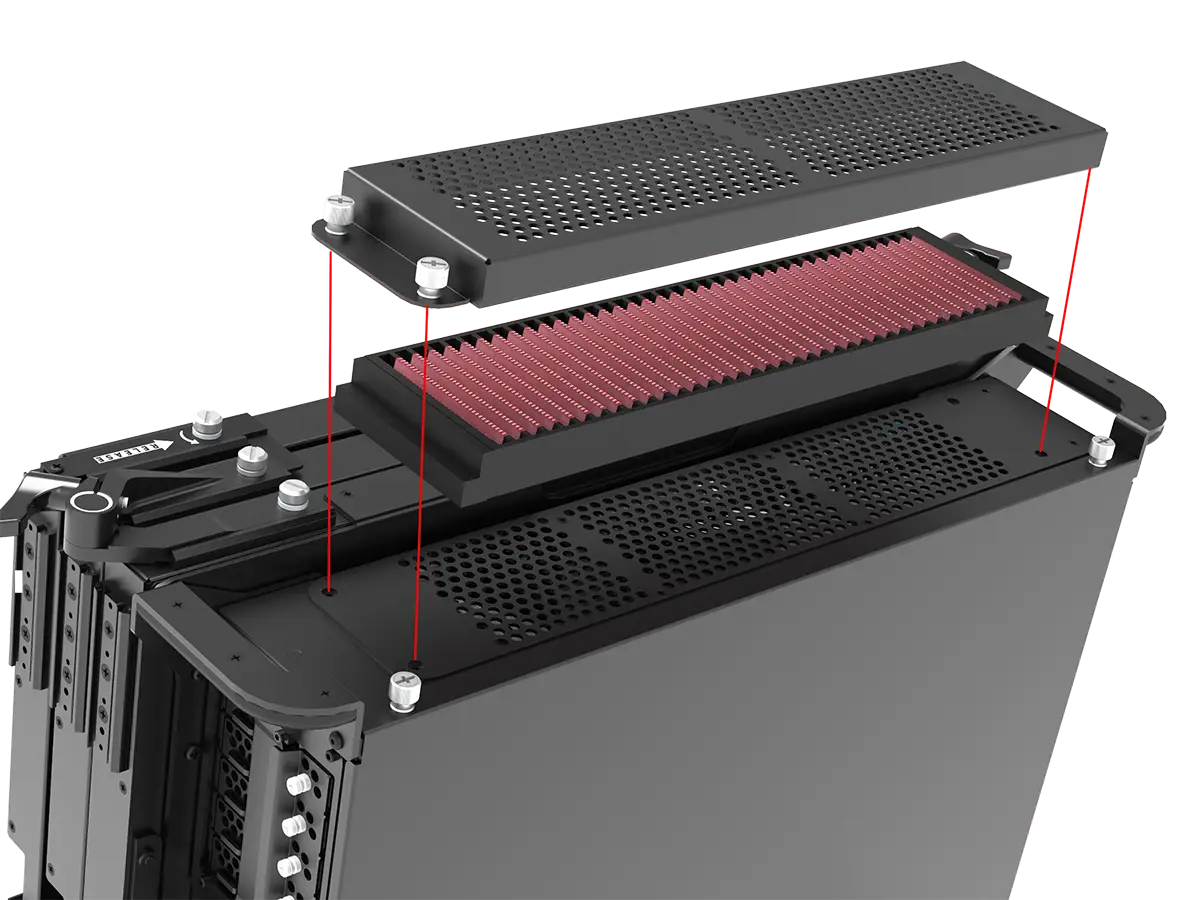

Removable, washable, and reusable particulate filter provides for high airflow while preventing dust and sand intrusion.

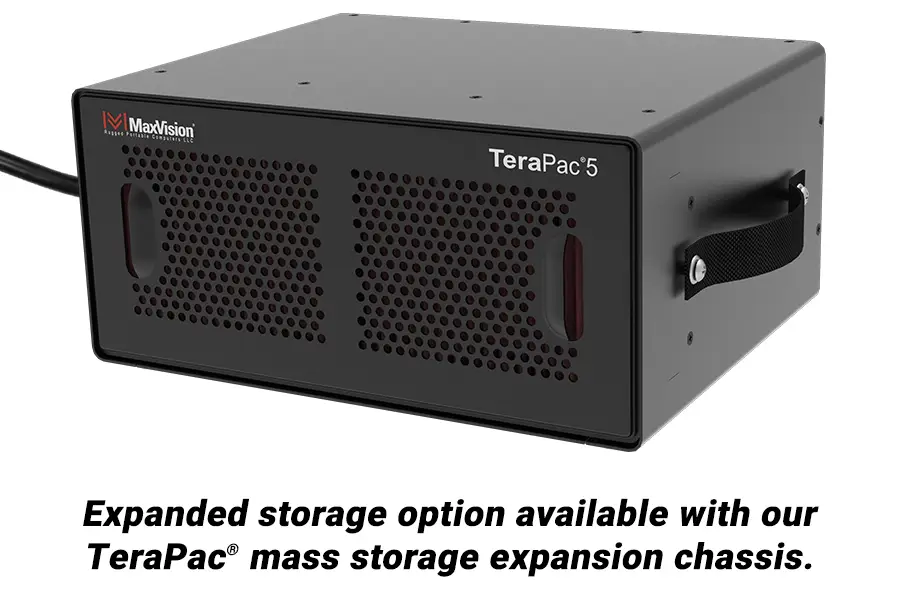

Expanded storage option available with our TeraPac^® mass storage expansion chassis. Take ALL of your mission-critical data with you.

Custom Transit Case Design

The MaxPac SP rugged portable workstation is meticulously custom designed to align with your specific mission requirements, offering you the ultimate in performance and functionality. However, if your workstation receives this level of dedicated design, why shouldn’t your transit case receive the same significance? Every detail matters when it comes to ensuring that your valuable equipment is protected and ready for action.

That’s why we provide custom-designed transit cases that adhere to the rigorous MIL-STD-810H standards. These cases are engineered to withstand the toughest conditions, safeguarding your MaxPac® SP and other essential gear from environmental hazards and impacts during transport. Our commitment to quality and performance means that your transit solution is not just an afterthought; it is an integral part of your operational strategy.

Learn More about our transit cases

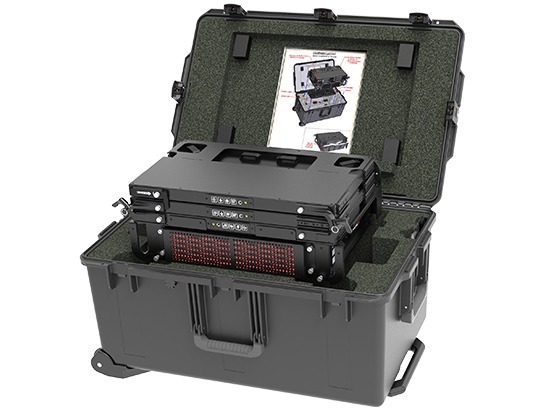

MaxPac® SP Rugged Portable Workstation Transit Case

Need Help Selecting the Right Workstation Configuration?

Explore our detailed comparison matrix and environmental specs to match processing power, rugged form factors, and displays to your operational profile.

Explore our Buyer’s Guide →

Can’t Find Your Exact Specifications?

Our engineering team specializes in custom configurations built around your exact mission requirements.
